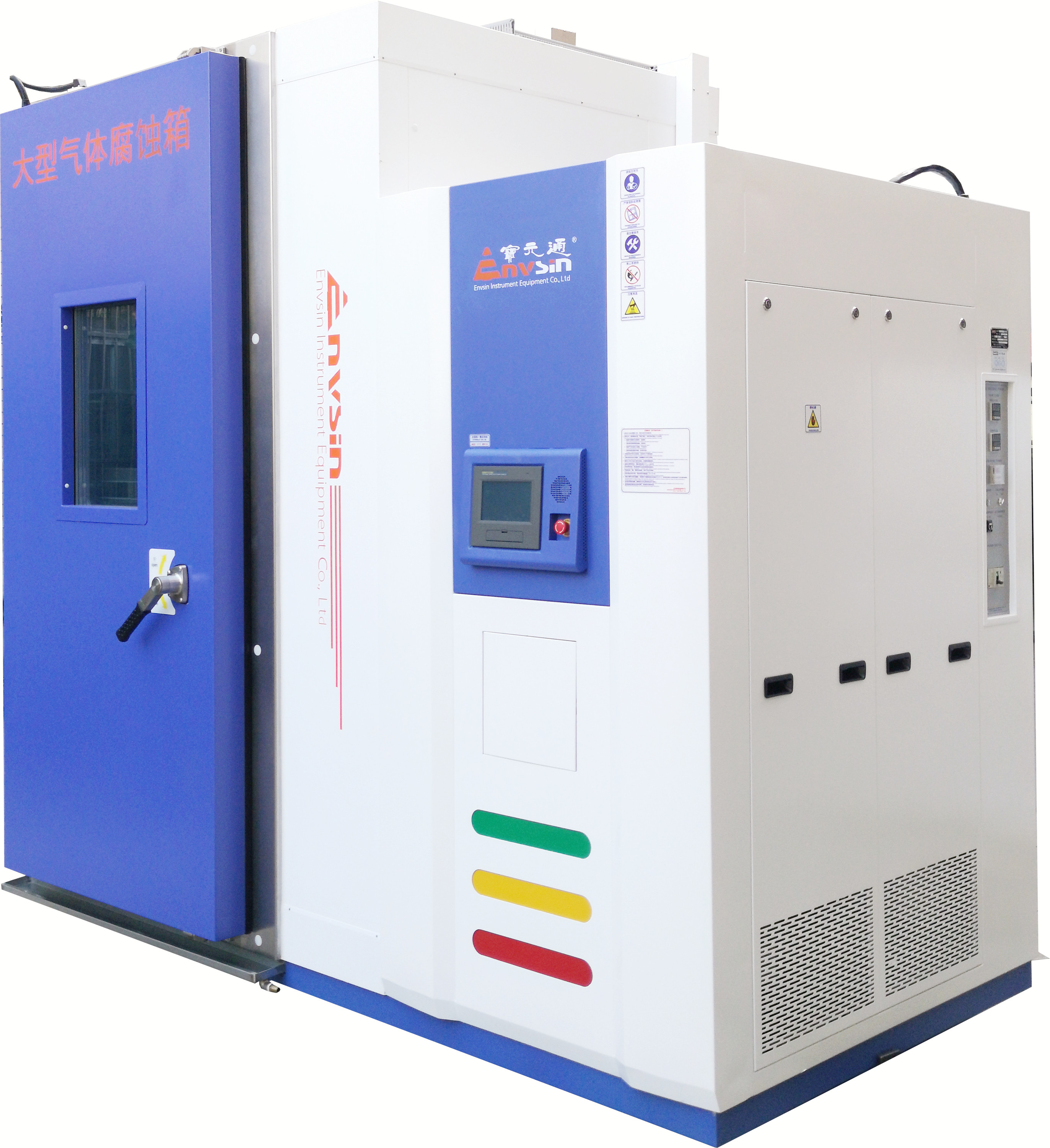

Envsin 40KW Air Cooled Cyclic Corrosion Test Chamber Cold Rolled Steel

Brand Name : Envsin

Model Number : EQF2330

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 35 per month

Delivery Time : 45 days

Packaging Details : Well packed in strong wooden case suitable for all types of long distance shipment

Product Name : Gas Test Chamber

Application : Corrosion Testing

The test volume : 3.3m³

Maximum operating power : 40KW

Maximum running current : 80A

Cooling Method : Air cooled (refrigerating unit)

Outer chamber material : cold rolled steel plate + double-sided electrostatic spraying process

Inner chamber material : PVC plastic board

Contact Now

H2S,SO2,NO2,CI2 Cyclic Gas Test Chamber Gas Corrosion Testing Equipment​

The gas test chamber can meet the hydrogen sulfide, sulfur dioxide, chlorine gas, nitrogen dioxide test and other environmental test results; According to the requirements of the test, the accelerated corrosion of the material or product is carried out to test the damage degree of the material or product in a certain time range, so as to assess the corrosion resistance of the material and its protective layer.

Specification:
Gas Test Chamber Technical Parameters (Product Model:EQF2330)
Temperature test
Temperature range:20℃~+45℃
Remark:
1. Test in accordance with GB/T2423 and IEC60068 under empty chamber
condition (except indicated).
2. The test data of the water-cooled test chamber are under the conditions that the water temperature is less than 28, the water pressure is between 0.3Mpa and 0.6Mpa, and the water pressure difference between inlet and outlet is more than 0.2Mpa.
Temperature uniformity:≤2.0℃
Temperature deviation:≤±2.0℃
Temperature fluctuation:≤±0.5℃
Temperature rate:≥1℃/min
Temperature and humidity climatic test

Humidity temperature control range:20℃~+50℃

Humidity range:50%RH~85%RH
Humidity uniformity:±5.0%RH
Humidity deviation: +2.0%~3%RH(>75%RH)±5%R.H(≤75%RH)
Humidity fluctuation:±5.0%RH

Gas concentration

 5ppb~30ppm

The deviation of gas concentration in the chamber shall not exceed 10% of the set concentration,

Concentration uniformity deviation of 10%

The empty chamber operation request meets the IEC60068-2-60 standard

Gas concentration measurement

By calculating the volume ratio and then through the mass flowmeter measurement

On load capacity
500W,The temperature can be stable, the chamber body is not deformed
Noise
 Working noise ≤70dB (measured at 1 meter away from the test chamber)
Wind speed
 ≤1.7m/s
Gas flowmeter H2S,SO2,NO2,CI2

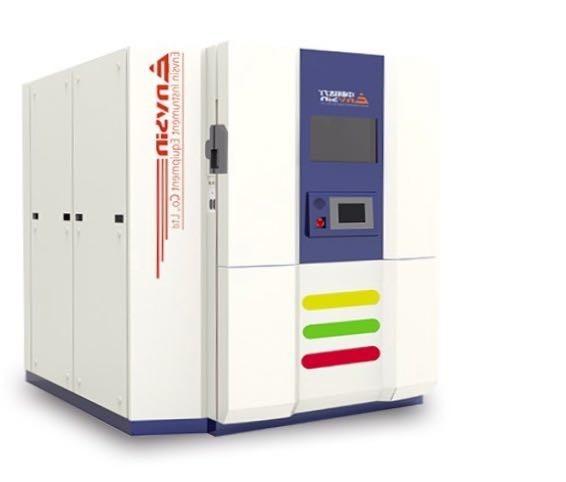

Envsin 40KW Air Cooled Cyclic Corrosion Test Chamber Cold Rolled Steel

Standard:
GB/T 2423.1-2001 / (IEC60068-2-1:2007)
Test A: Low temperature test method
GB/T 2423.2-2001 / (IEC60068-2-2:2007)
Test B: High temperature test method
GB/T 2423.3-2006 / (IEC60068-2-78:2007)
Test Cab: Constant humidity and heat test
GB/T 2423.4-2008 / (IEC60068-2-30:2005)
Test Db: alternating humidity and heat test
GJB 150.3-1986 / GJB 150.3A-2009
High-temperature test
GJB 150.4-1986 / GJB 150.4A-2009
Low temperature test
GJB 150.9-1986 / GJB 150.9A-2009
Thermal-humidity test
IEC60068-2-60
Test Method KE: Man-made low concentration pollution gas corrosion test
GB/T2423.51-2000
Environmental testing of electrical and electronic products Test KE: Flow mixed gas corrosion test​​​

Gas corrosion system:

Operating Principle

Gas test chamber design two sets of boxes, external temperature and humidity air conditioning cabinet + sample room. The air conditioning system has refrigeration system, heating system, humidification system, mixed gas inlet, exhaust gas discharge filter and other devices.

Before diluting corrosive gases are mixed, the air conditioning system creates the test temperature and humidity in the chamber outside the sample room. When the temperature and humidity are constant, the gas is input at the same time. The gas concentration is measured by calculating the volume ratio formula, and then the mass flowmeter is used for effective control, so that it reaches the specified range. In the gas test chamber, the gas is mixed evenly through the fan.

Wet air into the sample chamber

The air in the sample room is discharged by pumping, so that a low pressure is formed in the sample room. Compared with the space in the sample room outside the gas test chamber, the wet air in the sample room outside is pumped into the sample room through the pipe. By recording the data, the flow rate of the air extracted from the sample chamber can be adjusted to obtain the specified number of gas volume changes per hour.
