China Factory Price Rain Test Chamber for Automotive Waterproof Performance

Name: China Factory Price Rain Test Chamber for Automotive Waterproof Performance
Brand: Envsin
Price: 5000 USD

Quality China Factory Price Rain Test Chamber for Automotive Waterproof Performance wholesale

Brand Name : Envsin

Model Number : EFS-PRO

Certification : ISO CE

Place of Origin : Guangdong

MOQ : 1 set

Price : $5000 >=1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 35 work days

Usage : Universal Testing Machine, rain spray test

Product name : Rain Test Chamber

Warranty : 12 months

Power : AC380V±10%,50Hz

Rain Intensity : 10~20 cm/h

Water Drop Diameter : 0.5 mm~4.5mm

Dropping Volume : 280±300 L/m2.h

Temperature Range : RT +10℃~55℃

Raindrop Speed : 9 m/s

Flushing Pressure : >= 276 kPa

Volume : 1400L,2200L and other customized volume

Wind Speed Range : 5~18 m/s

Contact Now

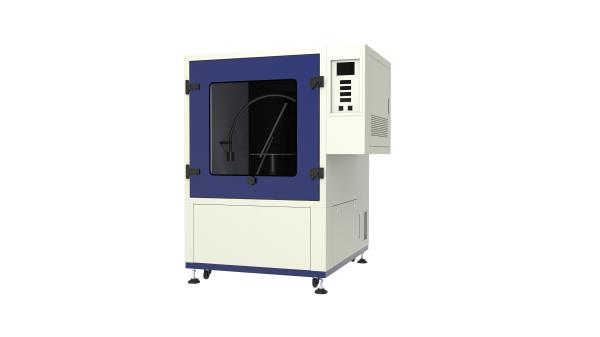

Rain Spray Test Machine

This test chamber is suitable for shell protection of the external lighting,signaling devices and automotive lamp.In order to achieve the waterproof performance of various products, it can provide realistic analog of various environment including water spray and rain spray that electronic products and their component may be subjected to during transporting and using.

Our Service

 • provide a complete testing solution (customization)

 • Preferential supplier of Apple and Cisco in China

 • Perfect systematic pre-sale and after-sale technical support

Products Features

China Factory Price Rain Test Chamber for Automotive Waterproof Performance

• Accept customized design requirements.

• Properties and applications meet the military and industry standards..

• Automatic water supply with ultrapure filter devices (optional) ; water shortage reminder function.

• rapid and stable control of chambers'temperature.

• Special design for rain and water environment; durable structure with sealed and heat insulation.

• design of modular construction.

• Optional observation window in testing space with a dust wiper for real-time monitoring.

• Intelligent and independent protection design for overload, overheat, power-supply abnormity, overvoltage, component malfunction monitoring.

• Optional network video monitoring and data synchronization.

Product Paramenters

Model	EFS-PRO Series
Standards	GJB-150.8-2009
Spray Water Test:		Water-dripping Test:
Temp.Range(℃)	RT +10 ~ + 55	Temp. Range (℃)	RT +10 ~ + 55
Spray Intensity (cm/h)	10~20 (Rotating shelf spray rate; Programmable)	Dripping Area	760×760mm, Dripping Platform adjustable
Water Drop Diameter(mm)	0.5 ~ 4.5	Water Drop Diameter(mm)	0.5 ~ 4.5,Dripping Hole Distance 25.4
Air Speed Range (m/s)	5~18 (Rotating Shelf entry horizontal air speed)	Rain Rate (L/m ².h)	280±300
Spray Time (min)	Programmable (0~999);auto-controlled and cycled	Distance(m)	Dripping Distance 1
Warm Up Range(℃)	Water Temp. +10 (Max+55)	Water Supply	Continuously Pump Auto Supply;controlled
Rotating Shelf Dimension	φ800mm, Rotating Shelf speed adjustable	Dripping Time (min)	0~999, programmable
Weight (kg)	65	Specimens Dimension(mm)	Max. Dimension :φ700×700
Specimens Dimension	Max. Dimension:φ700×700mm
Water-Proof Test:
Water Spray Pressure(KPa)	276	Water Supply Method	Water Pump Supply Continuously
Stainless Steel Nozzles	Overhead,grid-shape,nozzle angle adjustable	Test Time(min)	0~999, Adjustable
Nozzles Amt	At least 1/0.56m in the raining range Nozzles installed 450mm~500mm to the suface of samples	Water Drop Diameter (mm)	2~4.5
Specimens Dimension	Max, Dimension φ700×700mm
Test Space Dimension	1500W1500D1600H(mm)
Power	AC380V ±10%, 50HZ, 3/N/PE

Model	EFS-LX Series	EFS-LC Series	EFS-LV Series
Test Space Dimension(mm)	900W900D900H(1400)	1300W1300D1300H(1800)	1700W1700D1700H(2200)
Optional water-proof test	IPX1,IPX2(Dripping teset; vertical, slope15 ); IPX3,IPX4 (Swing pipes or Spraytest)
Abilities (composable)	IPX5,IPX6 (Flush Test); IPX9 (Shower test)
Standards	GB4208-2008/IEC60529:2001
Power	AC230V±10%, 50HZ, 1/N/PE


Options Accessories
• Entry ports
 • Power outlets for specimens
 • Spare parts package
 • E-management and cyber-software
 • Video monitor system



Standard Version
• Matched rotating shelf for specimens
• Water filter
